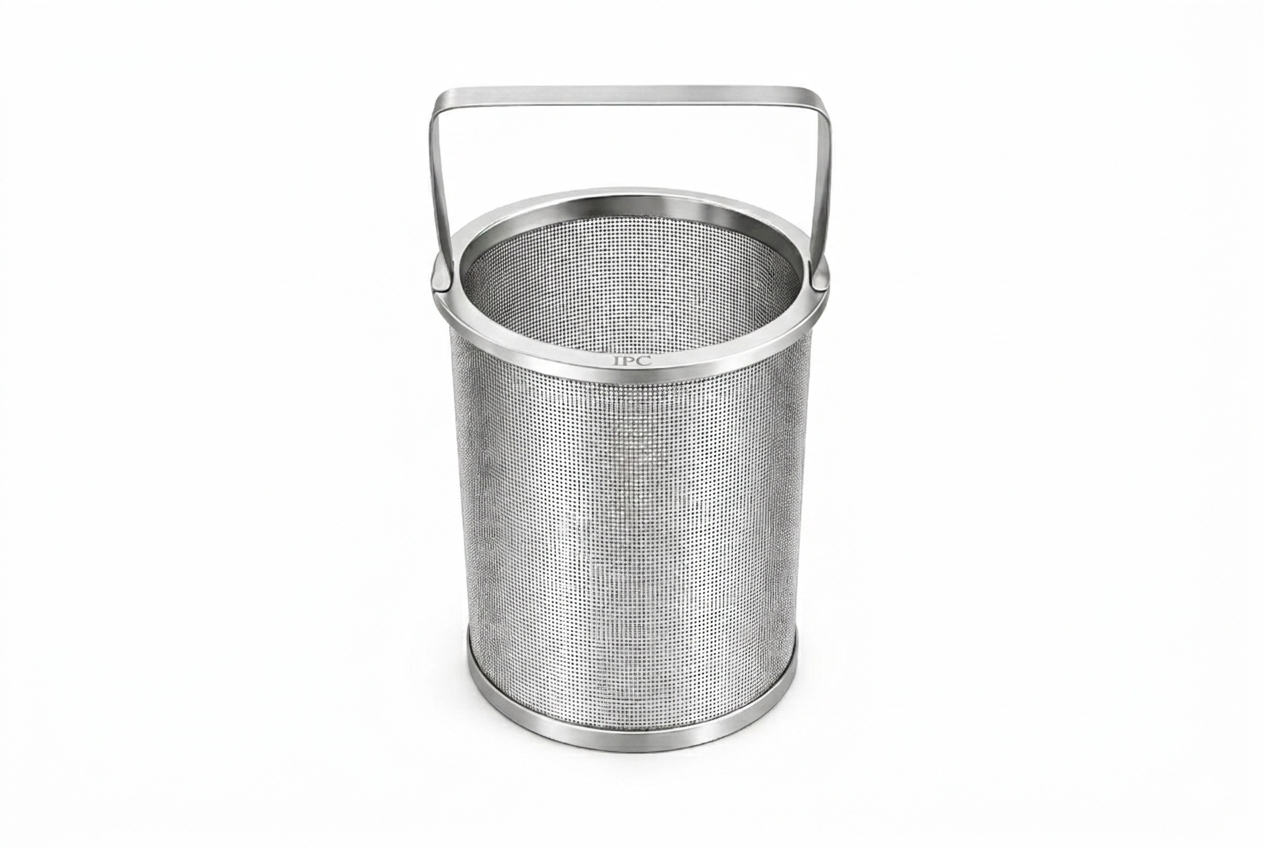

At Industrial Parts and Components, our Bucket Strainers (also known as Basket Strainers)are engineered for high-capacity filtration in piping systems where debris loading is high and frequent cleaning may be required. Unlike standard strainers, the "bucket" design allows for a significantly larger surface area, providing excellent dirt-holding capacity and longer service intervals. These strainers are the ideal solution for protecting large-scale industrial equipment from stones, scale, and other foreign solids in liquid flow applications.

Key Features

• Large Internal Volume:Designed with an oversized basket chamber that can hold a substantial amount of debris without significantly increasing pressure drop, making them perfect for "dirty" fluid applications
• Easy-Open Cover:Equipped with quick-release knob covers or bolted closures that allow for rapid access to the filter element, minimizing downtime during maintenance and cleaning.
• Zero-Bypass Sealing:The basket is precision-seated within the body using machined surfaces or O-rings to ensure that no fluid can bypass the filtration media, guaranteeing 100% protection for downstream components

Specification Table

Parameter	Details
Element Type	Single Basket (Simplex) or Dual Basket (Duplex)
Housing Material	Cast Iron, Carbon Steel, Stainless Steel, or Bronze
Basket Material	304/316 Stainless Steel / Monel / Hastelloy
Mesh/Perforation	1/32" to 1/2" Perforations; up to 400 Mesh Liners
Pressure Drop	Initial: < 0.1 bar (at rated flow)
