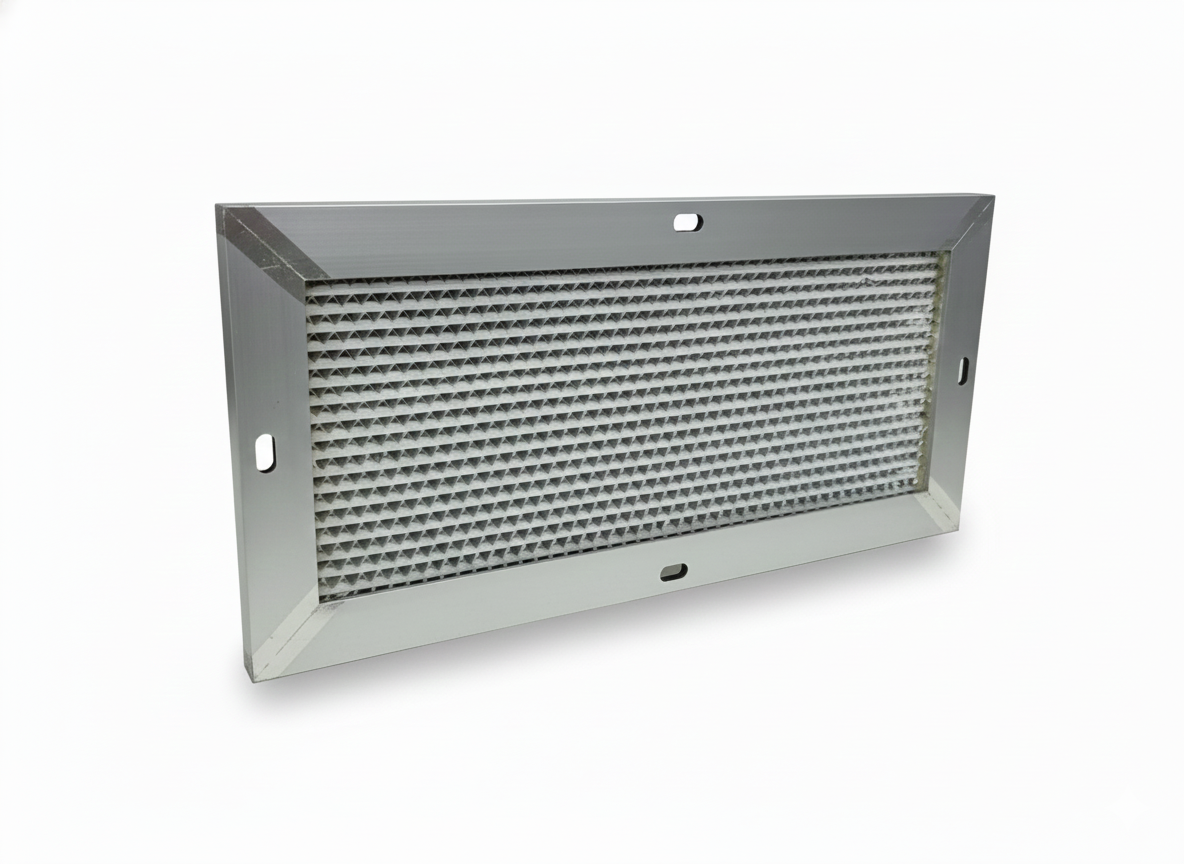

At Industrial Parts and Components, Deep Pleat Filters are engineered for heavy-duty performance and exceptional durability in high-demand air filtration systems. Unlike compact designs, these filters utilize deep-fold pleating technology with aluminum or cardboard separators to handle high air volumes and turbulent airflow. This robust construction provides a massive dust-holding capacity, making them the ideal choice for demanding industrial environments and primary air handling units where long service life is a priority..

Key Features

• Maximum Dust Loading: The deep-fold design allows for a significantly higher volume of filter media, extending the interval between replacements.
• Rugid Separator Technology:Utilizes precision-corrugated aluminum or moisture-resistant cardboard separators to maintain pleat stability and prevent media collapse.
• Structural Integrity:Housed in heavy-duty galvanized steel or aluminum frames to withstand high static pressure and harsh operating conditions.
• High Airflow Capacity:Designed to manage large volumes of air with uniform distribution across the entire media surface
• Versatile Media Options:Available in a range of efficiencies from coarse pre-filtration to high-efficiency fine filtration.

Specification Table

Parameter	Details
Filter Type	Deep Pleat HEPA (Absolute Filter)
Media	Water-resistant Micro-glass Fiber
Separator Material	Corrugated Aluminum (with hemmed edges for safety)
Frame Material	Galvanized Steel / SS 304 / Anodized Aluminum
Micron Rating	0.3 Microns (The industry standard for HEPA)
Efficiency Class	H13 (99.97% - 99.99%) / H14 (99.995%+)
Operating Temperature	Standard: 80°C
Sealant	High-temperature Polyurethane / Silicone
Pressure Drop (Initial)	250 Pa @ nominal airflow
