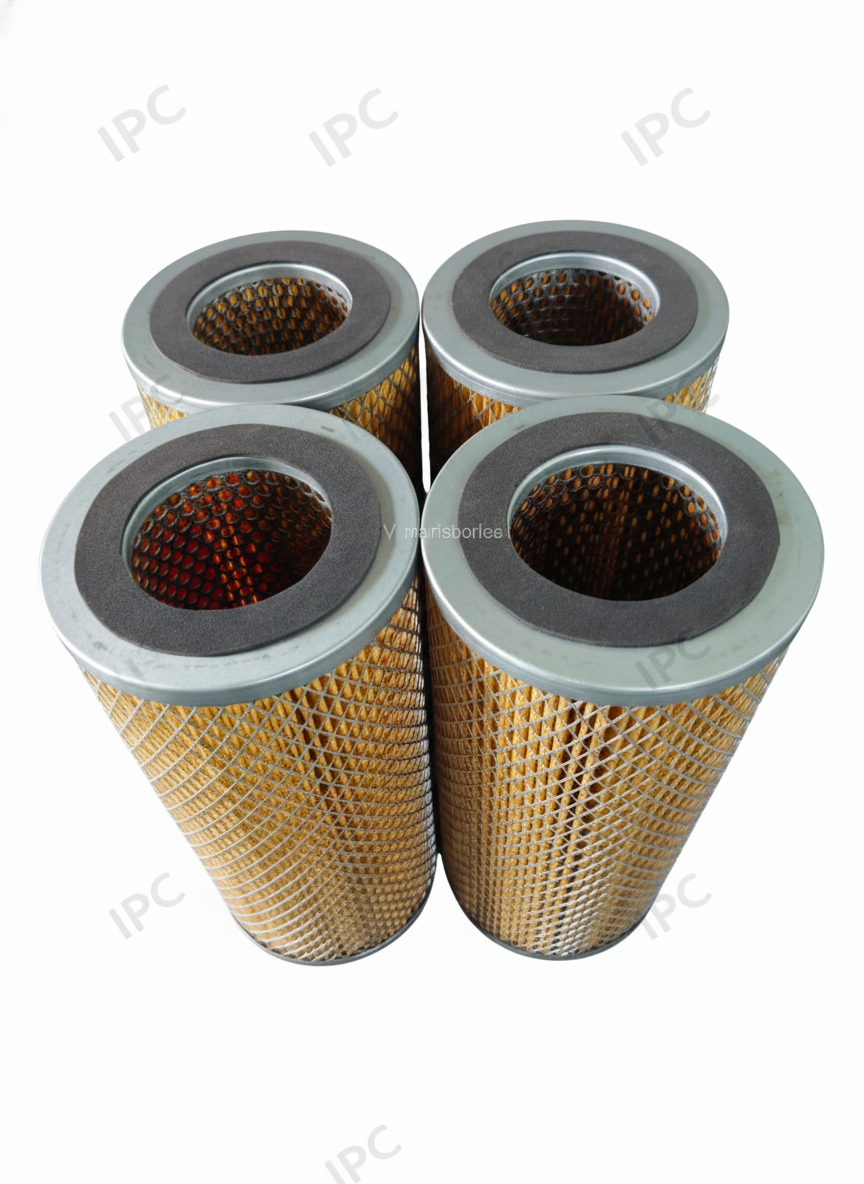

At Industrial Parts and Components, our Paper Pleated Filter Cartridgesare engineered for high-performance air intake and industrial filtration. Designed with a robust outer reinforcement and specialized media, these cartridges are the ideal solution for demanding environments where structural durability and fine particle retention are critical. Whether used in heavy machinery, compressors, or specialized power systems, our filters provide maximum protection and extended service life for your equipment..

Key Features

• High-Efficiency Cellulose Media: Features premium paper-based pleated media that provides exceptional depth filtration, capturing fine contaminants while maintaining low resistance to airflow.
• Industrial-Grade Sealing Equipped with a heavy-duty compression gasket and metal end caps, ensuring a 100% airtight seal to prevent any unfiltered bypass.
• Durability-Focused Design: The thermal-bonded metal end caps allow the filter to operate reliably in high-vibration and high-temperature environments compared to standard plastic alternatives.

Specification Table

Parameter	Details
Media Material	Resin-Impregnated Cellulose Paper (Heavy-Duty Construction)
Support Cage	Galvanized Steel / Stainless Steel Diamond Mesh
End Cap Material	Plated Carbon Steel, Stainless Steel, or Polyurethane
Filtration Efficiency	98% to 99.9% on particles 5 to 10 microns and larger
Operating Temperature	Up to 120°C (250°F) continuous
Operating Temp	Standard: 80°C
Configuration	Cylindrical (Single Open End or Double Open End)
